Mechanical Ventilation
Help & Advice
Discover our comprehensive guides or watch our 'How To' videos to get the most out of your BEAM Mechanical Ventilation System.
Maintenance Guides
Axco MVHR C Range filter change
PDF 5.608 MB
View ResourceAxco MVHR HERU filter change
PDF 7.468 MB
View ResourceDantherm Passive House MVHR System Controls
PDF 1.123 MB
View ResourceNight Cooling function in Next Generation HERU Heat Recovery Ventilation Systems
PDF 170.7 KB
View ResourceAxco Heru EC Summer Cooling Info Activation
PDF 140.355 KB
View ResourceAura t Owners Manual
PDF 3.606 MB
View ResourceHow to Connect BEAM Vent SMART App
PDF 307.718 KB
View ResourceHERU S/T IQ Controller Operation Maintenance Manual & APP set up
PDF 5.401 MB
View Resource'How-to' Video Guides
Axco C Range Front Loaded Filter Replacement
Mechanical Ventilation
Axco Heru NG Model S Filter Replacement
Mechanical Ventilation
Axco Heru NG Model T Filter Replacement
Mechanical Ventilation
Axco C Range Filter Replacement
Mechanical Ventilation
Axco Heru Model S Filter Replacement
Mechanical Ventilation
Axco Heru Model T Filter Replacement
Mechanical Ventilation

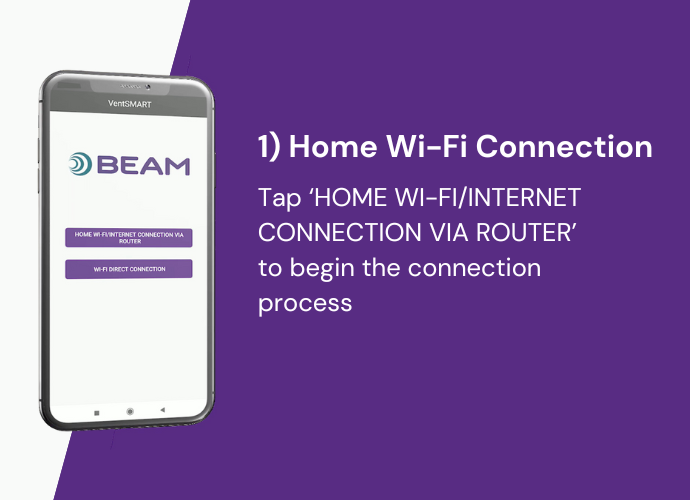

Connecting to the VentSmart App (Aura T Controller only)
Mechanical Ventilation
Frequently Asked Questions
Here are some answers to your most frequently asked questions about our mechanical ventilation systems.
How often do I need to change MVHR filters?
Depending on your house location, the filters usually need to be changed every year. The control / display provided with your Axco MVHR system will alert you when this needs to be done.
How does Summer bypass work in Heat Recovery Ventilation units?
On consecutive hot summer days, today's airtight, highly insulated homes (some facing south) with additional glazing to aid winter heating can have issues with summer internal uncontrolled heat gains and retention. To help reduce this, it’s recommended to use external or internal shading on the windows. Cooling is controlled by opening windows, (especially at night when it is cooler outside) to create cross ventilation. The Mechanical Ventilation with Heat Recovery System can be increased to summer boost which will increase the fresh air supply and extraction rates and help create a noticeable benefit.
Do PIV units need serviced?
There are no service requirements for a PIV system, although we recommend changing the filter every 5 years.
What's the guarantee?
All BEAM Mechanical Ventilation Systems carry a two year product warranty.
What direction should the arrows point when changing C Range filters?
The arrows should point inwards, towards the heat exchanger.
How do I reset the filter timer on my BEAM NG Heru MVHR unit after changing the filter?
To reset the filter timer on a BEAM NG Heru MVHR unit, follow these simple steps:
- On the IQ controller, open the main menu
- Select service
- Enter the code 1199
- Select setup
- Click reset
- Click reset
- Click the menu button
- Click on X
How do I reset the filter on a BEAM Auralite MVHR Indicator Panel after changing the filter?
After changing the filter on a BEAM C Range unit with Auralite Indicator Panel, use a paper clip or similar fine point to de-press the reset button. The reset button is located on the righthand side of the panel, between the filter indicator light and the fault indicator light. The exact location can be seen on this diagram.
How do I reset the filter on a BEAM Aura-T MVHR controller?
After changing the filter on a BEAM C Range unit with Aura T controller, follow the instructions below:
- Tap the spanner icon to enter the Setup Mode menu
- Use the arrows to navigate to the Filter Reset
- If a filter change is required, the reset ring will be flashing
- Tap the Enter key to reset.
Full instructions are available on page 13 of the Aura T owners manual.
Need more help and advice?
Our friendly customer service team are available to provide support.
